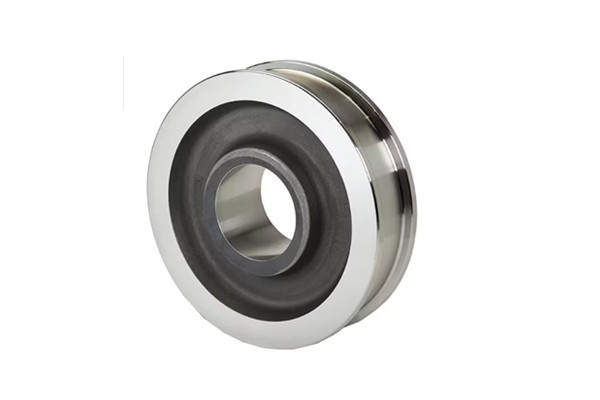

Kingrail Parts offers a wide range of double-flange wheels in various sizes and specifications for heavy material handling and crane transport. Our wheels are suitable for applications such as overhead cranes, manufacturing carriages, and mining cars.
Our standard double-flange wheels are CNC machined from solid forgings, resulting in the most robust and durable wheels.
To meet specific customer needs, we can also customize double-flange wheels to customer specifications and requirements.
Specifications
Part Number | Wheel Diameter (mm) | Flange Diameter (mm) | Flange Width (mm) | Width Between Flanges (mm) | Wheel Width (mm) | Bearing Bore | Wheel Bore w/ Reducers/Sleeve | Wheel Width Across Reducers (mm) | Wheel Load Capacity (kg) |
DFST50X20 | 50 | 68 | 5 | 20 | 30 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 36 | 350 |
DFST50X40 | 50 | 68 | 5 | 40 | 50 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 500 |
DFST50X65 | 50 | 68 | 5 | 65 | 75 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 500 |
DFST65X34 | 65 | 83 | 8 | 34 | 50 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 800 |
DFST65X59 | 65 | 83 | 8 | 59 | 75 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 1000 |
DFST65X84 | 65 | 83 | 8 | 84 | 100 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 106 | 1200 |
DFST75X34 | 75 | 93 | 8 | 34 | 50 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 1200 |
DFST75X59 | 75 | 93 | 8 | 59 | 75 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 1500 |
DFST75X84 | 75 | 93 | 8 | 84 | 100 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 106 | 1500 |
DFST75X84 | 75 | 93 | 8 | 84 | 100 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 106 | 1500 |
DFST100X55 | 100 | 119 | 10 | 55 | 75 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 81 | 1800 |
DFST100X80 | 100 | 119 | 10 | 80 | 100 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 106 | 2000 |
DFST100X105 | 100 | 119 | 10 | 105 | 125 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 131 | 2000 |
DFST100X130 | 100 | 119 | 10 | 130 | 150 | 30M BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 156 | 2000 |
DFST125X55 | 125 | 149 | 10 | 55 | 75 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 81 | 1800 |
DFST125X80 | 125 | 149 | 10 | 80 | 100 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 106 | 2000 |
DFST125X105 | 125 | 149 | 10 | 105 | 125 | 30 DOUBLE ROW ANGULAR CONTACT BBs | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 131 | 2500 |
DFST125X130 | 125 | 149 | 10 | 130 | 150 | 30 DOUBLE ROW ANGULAR CONTACT BBs | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 156 | 2500 |
DFST150X52 | 150 | 178 | 11.5 | 52 | 75 | 40MM BB | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 85 | 2750 |
DFST150X76 | 150 | 178 | 12 | 76 | 100 | 40MM BB | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 110 | 2750 |
DFST150X101 | 150 | 178 | 12 | 101 | 125 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 135 | 3500 |
DFST175X52 | 175 | 210 | 11.5 | 52 | 75 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 85 | 3500 |
DFST175X76 | 175 | 210 | 12 | 76 | 100 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 110 | 3750 |
DFST175X101 | 175 | 210 | 12 | 101 | 125 | 40 DOUBLE ROW ANGULAR CONTACT BB'S | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 135 | 4000 |
DFST175X120 | 175 | 210 | 15 | 120 | 150 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 24.2MM ID (TO SUIT M24 BOLT) | 160 | 4000 |
DFST200X45 | 200 | 237 | 15 | 45 | 75 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 85 | 4500 |
DFST200X70 | 200 | 237 | 15 | 70 | 100 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 110 | 5000 |
DFST200X95 | 200 | 237 | 15 | 95 | 125 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 135 | 5500 |
DFST200X120 | 200 | 237 | 15 | 120 | 150 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 160 | 5250 |
DFST225X70 | 225 | 258 | 15 | 70 | 100 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 110 | 5500 |
DFST225X120 | 225 | 258 | 15 | 120 | 150 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 160 | 6000 |
DFST225X135 | 225 | 268 | 20 | 135 | 175 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 185 | 6500 |
DFST225X160 | 225 | 268 | 20 | 160 | 200 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 210 | 7500 |
DFST250X85 | 250 | 288 | 20 | 85 | 125 | 80MM BB | 42.2MM ID (TO SUIT M42 BOLT) | 145 | 7750 |
DFST250X110 | 250 | 288 | 20 | 110 | 150 | 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT | 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC | 170 | 1200/8500/15000 |
DFST250X150 | 250 | 298 | 25 | 150 | 200 | 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT | 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC | 220 | 1350/9500/16500 |
DFST300X75 | 300 | 348 | 25 | 75 | 125 | 100MM BB/80MM SPHERICAL ROLLER + HT | M52 PRECISION BOLT BY RWC | 160 | 10000/14000 |
DFST300X100 | 300 | 348 | 25 | 100 | 150 | 100MM BB/80MM TAPERED ROLLER OR SPHERICAL ROLLER + HT | M52 PRECISION BOLT BY RWC | 175 | 1750/120000 |
DFST350X75 | 350 | 398 | 25 | 75 | 125 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT | M60 PRECISION BOLT BY RWC | 160 | 1400/20000 |
DFST350X100 | 350 | 398 | 25 | 100 | 150 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT | M60 PRECISION BOLT BY RWC | 175 | 1600/25000 |
DFST350X150 | 350 | 398 | 25 | 150 | 200 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT | M60 PRECISION BOLT BY RWC | 227 | 18000/28000/32000 |
DFST400X100 | 400 | 498 | 25 | 100 | 150 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT | M70/M80 PRECISION BOLT BY RWC | 185 | 2500/30000/35000 |
