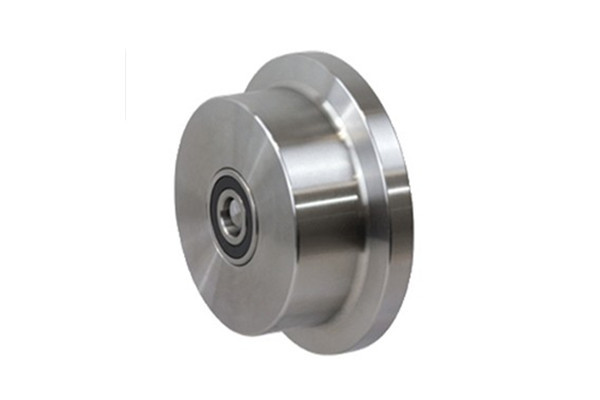

Kingrail Parts manufactures single flange wheels in a wide variety of sizes and specifications. These wheels are suitable for various industrial, crane, railway and other heavy-duty applications.
Our single flange wheels are made from cast iron and steel and can also be customized to meet your application requirements.
Our standard single flange wheels are CNC machined from solid forgings to create robust, durable hubs free from brittle deformation.
Specifications
Part Number | Wheel Diameter (mm) | Flange Diameter (mm) | Flange Width (mm) | Wheel Width (mm) | Width Across Wheel (mm) | Bearing Bore | Wheel Bore w/ Reducers/Sleeve | Wheel Width Across Reducers (mm) | Wheel Load Capacity (kg) |
SFST50X24 | 50 | 68 | 5 | 25 | 30 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 36 | 350 |
SFST50X45 | 50 | 68 | 5 | 45 | 50 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 500 |
SFST50X70 | 50 | 68 | 5 | 70 | 75 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 500 |
SFST65X42 | 65 | 83 | 8 | 42 | 50 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 800 |
SFST65X67 | 65 | 83 | 8 | 67 | 75 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 1000 |
SFST75X42 | 75 | 93 | 8 | 42 | 50 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 1200 |
SFST75X67 | 75 | 93 | 8 | 67 | 75 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 1500 |
SFTST100X65 | 100 | 119 | 10 | 65 | 81 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 81 | 1800 |
STSF100X90 | 100 | 119 | 10 | 90 | 106 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 106 | 2000 |
STSF125X65 | 125 | 149 | 10 | 65 | 75 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 81 | 1800 |
STSF125X90 | 125 | 149 | 10 | 90 | 90 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 106 | 2000 |
STSF150X64 | 150 | 178 | 12 | 64 | 75 | 40MM BB | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 85 | 2750 |
STSF150X88 | 150 | 178 | 12 | 88 | 110 | 40MM BB | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 110 | 2750 |
STSF175X63 | 175 | 210 | 12 | 63 | 85 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 85 | 3500 |
STSF175X88 | 175 | 210 | 12 | 88 | 110 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 110 | 3750 |
STSF175X113 | 175 | 210 | 12 | 113 | 135 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 135 | 4000 |
SFST200X58 | 200 | 237 | 15 | 58 | 75 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 85 | 4500 |
SFST200X85 | 200 | 237 | 15 | 85 | 100 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 110 | 5000 |
SFST200X110 | 200 | 237 | 15 | 110 | 125 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 135 | 5500 |
SFST225X85 | 225 | 258 | 15 | 85 | 110 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 110 | 5500 |
SFST225X135 | 225 | 258 | 15 | 135 | 160 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 160 | 6000 |
SFST225X155 | 225 | 268 | 20 | 155 | 175 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 185 | 6500 |
STSF250X105 | 250 | 288 | 20 | 105 | 145 | 80MM BB | 42.2MM ID (TO SUIT M42 BOLT) | 145 | 7750 |
STSF250X130 | 250 | 288 | 20 | 130 | 170 | 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT | 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC | 170 | 8500/12000/15000 |
STSF300X100 | 300 | 348 | 25 | 100 | 125 | 100MM BB/80MM SPHERICAL ROLLER + HT | M52 PRECISION BOLT BY RWC | 160 | 10000/14000 |
STSF300X125 | 300 | 348 | 25 | 125 | 150 | 100MM BB/80MM TAPERED ROLLER OR SPHERICAL ROLLER + HT | M52 PRECISION BOLT BY RWC | 175 | 1750/120000 |
STSF350X100 | 350 | 398 | 25 | 100 | 125 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT | M60 PRECISION BOLT BY RWC | 160 | 1400/20000 |
STSF350X125 | 350 | 398 | 25 | 125 | 150 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT | M60 PRECISION BOLT BY RWC | 175 | 1600/25000 |
STSF400X125 | 400 | 478 | 25 | 125 | 150 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT | M70/M80 PRECISION BOLT BY RWC | 185 | 2500/30000/35000 |
STSF400X175 | 400 | 478 | 25 | 175 | 200 | 100MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER/ + HT/ + HIGH TENSILE HT | M70/M80 PRECISION BOLT BY RWC | 225 | 30000/35000/40000 |
Get More Help
If you need flange wheels, please contact us. Our wheel experts will provide you with the best solution.
