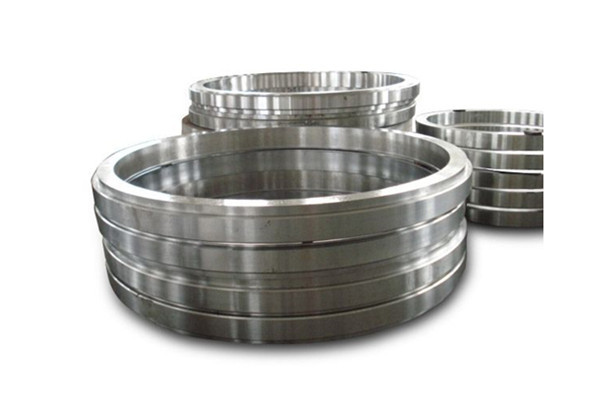

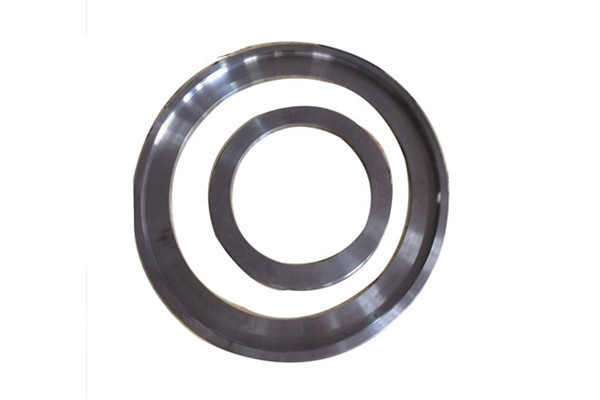

Rolled Ring Forging

Description

The production of rolled ring forgings begins by cutting and shaping a round metal billet into a donut-like form. This donut-shaped billet is heated above its recrystallization temperature and then placed over an idler roll or mandrel. The idler roll guides the ring toward a drive roll; the drive roll rotates continuously and uniformly, compressing the ring to the desired thickness and dimensions.

This metalworking technique produces seamless rolled rings suitable for applications in machine tools, piping systems, pressure vessels, and turbines.

Specification

Advantages of Rolled Ring Forgings

Rolled ring forgings offer numerous advantages across various industries and applications, such as:

1. High Strength

Metal parts produced via the rolled ring forging process possess exceptional strength. These parts maintain their performance and durability even under extreme temperatures and harsh conditions—environments where standard parts might fail. This unmatched toughness makes them an ideal solution for heavy-duty applications, including:

* Mining and road construction

* Paper mills

* Oil refineries

* Trucks and off-road vehicles

2. Cost-Effectiveness

Despite the complexity of the process, rolled ring forging yields cost-effective end products due to minimal machining requirements and low tooling costs, making it more economical than other manufacturing and forging methods.

3. Versatility

Seamless rolled rings can be manufactured from a wide range of materials, including aluminum, nickel, stainless steel, carbon steel alloys, and many others. Our advanced rolling capabilities allow us to produce high-quality components with diameters of up to 110 inches. This versatility enables manufacturers and customers to select the material with the best performance characteristics for their specific application.

4. High-Temperature Resistance

The manufacturing process involves working the metal at high temperatures—approaching or reaching its recrystallization point. Careful handling and processing throughout the operation ensure that the final product is capable of withstanding high-temperature environments.

5. Additional Benefits

Other advantages of seamless rolled ring forgings include:

* Superior structural integrity

* Controlled directional grain flow

* Elimination of voids and inclusions

* No welding required (reducing the risk of fracture and part fatigue)

* Increased tensile and yield strength

* Minimized waste

Types of Rolled Rings

Kingrail Parts utilizes a variety of rolled ring materials to meet the specific hardness, tensile strength, and machinability requirements of particular applications. Common types of rolled ring materials include:

1. Carbon Steel Rolled Ring Forgings

Carbon steel rolled ring forgings are best suited for applications where extreme performance requirements (such as those necessitating stainless steel) are not present, but where strength and cost-effectiveness are key. The rolled ring forging process enhances steel strength and durability, eliminates internal voids, and ensures uniform grain flow.

2. Alloy Steel Rolled Ring Forgings

Mixing different metals in specific proportions creates durable alloy steels characterized by high strength, superior quality, and toughness. Adding carbon can enhance material performance when specific applications demand higher tensile strength; however, higher carbon content also increases hardness and reduces machinability.

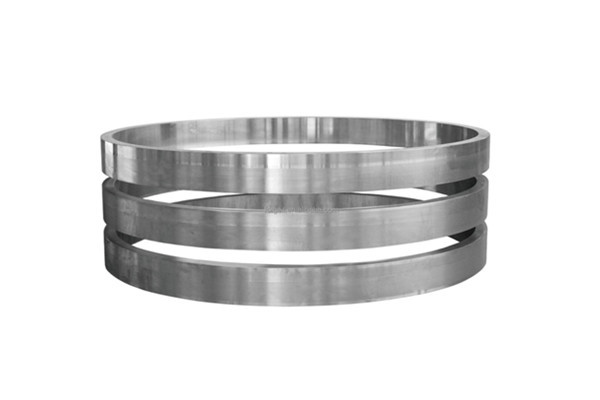

3. Stainless Steel Rolled Ring Forgings

Stainless steel is a commonly used material in the rolled ring forging process. This metal is widely used due to the following characteristics:

* Corrosion resistance

* Exceptional strength

* Durability

* Recyclability

4. Superalloys in Rolled Ring Forgings

Specialty alloys such as Inconel, Waspaloy, and Hastelloy offer numerous advantages that make them ideal for seamless rolled ring forgings, including:

* Fatigue resistance

* Temperature resistance

* Corrosion resistance

Industrial Applications for Rolled Rings

The rolled ring forging services provided by Kingrail Parts offer significant advantages to the following industries:

* Power generation

* Marine and shipbuilding

* Mining

* Road construction

* Oil and gas

Why Choose Kingrail Parts?

When partnering with a rolled ring manufacturer, it is essential to select a supplier with the necessary skills, materials, and experience to ensure project success. Kingrail Parts’ extensive experience speaks for itself. Our robust forging capabilities enable us to supply the most reliable and durable seamless rolled rings, consistently meeting our customers' precise specifications. As an international company serving the global market, we operate production facilities in both Asia and North America, offering competitively priced engineered products.

We are ISO 9001 certified. As a quality-driven company, we are committed to delivering excellence and providing a full range of value-added services to meet—and exceed—customer expectations.
